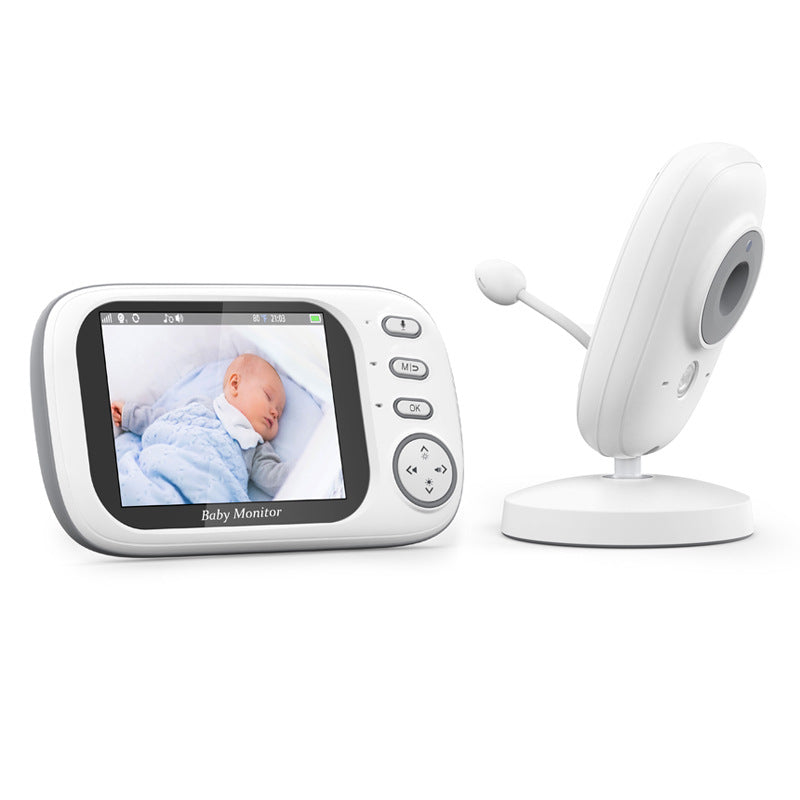

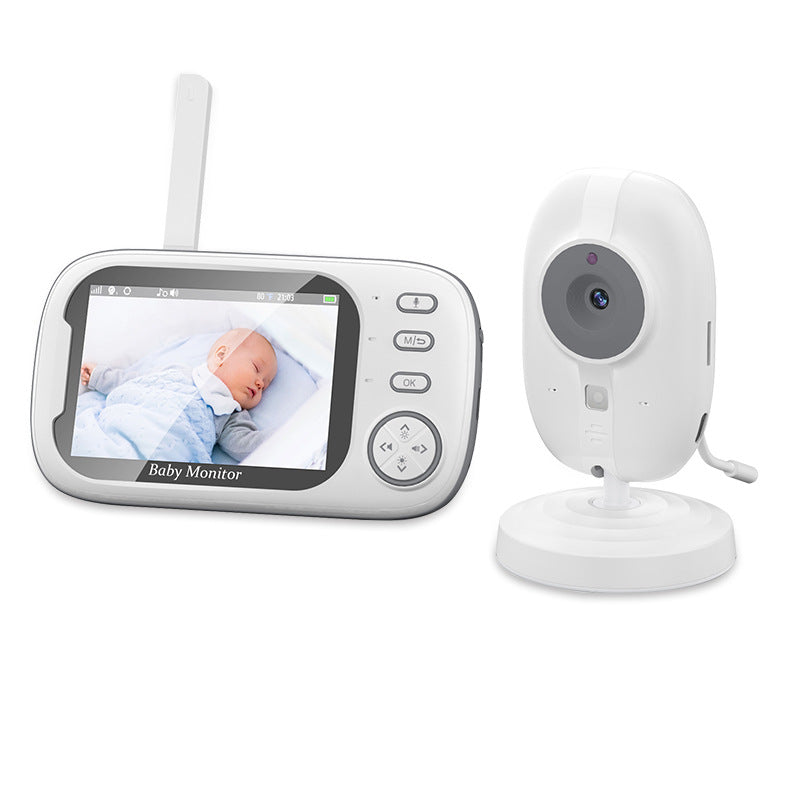

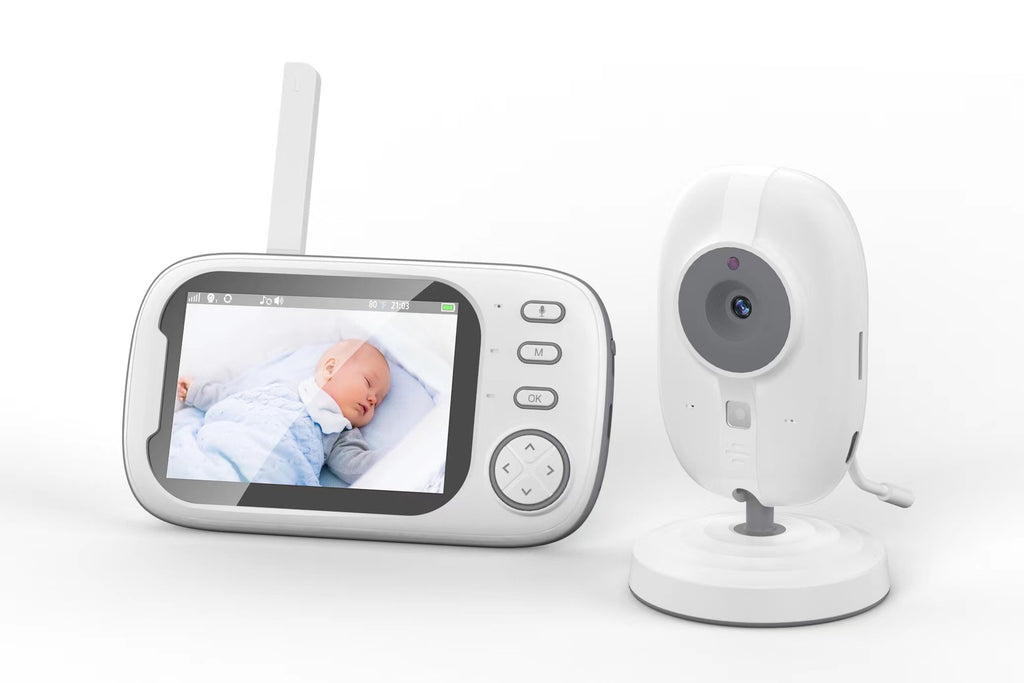

3.5inch Baby Monitor Caregiver Baby Monitor 603 Upgraded Model with Camera

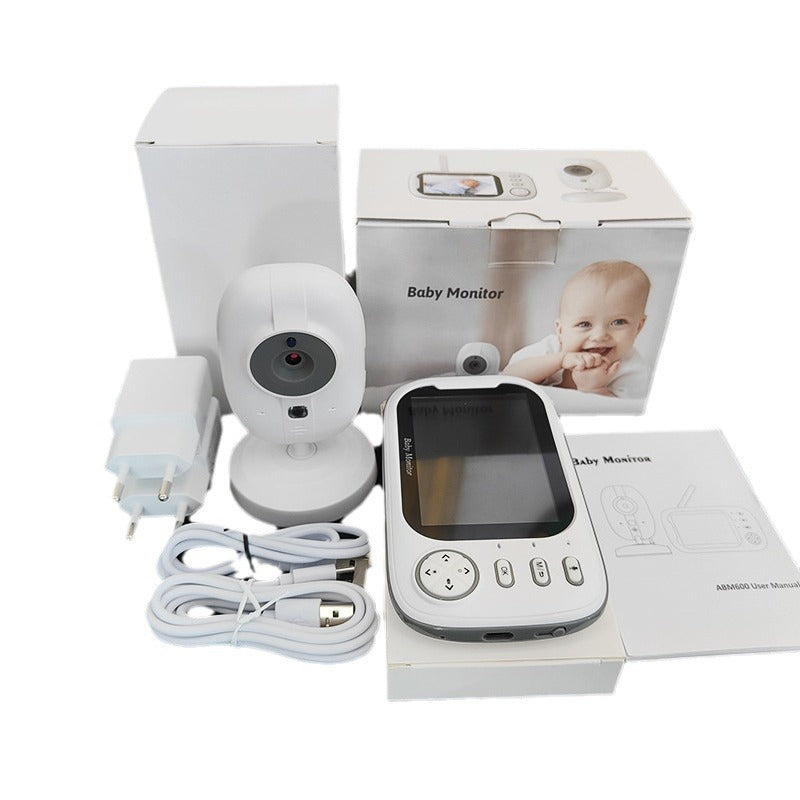

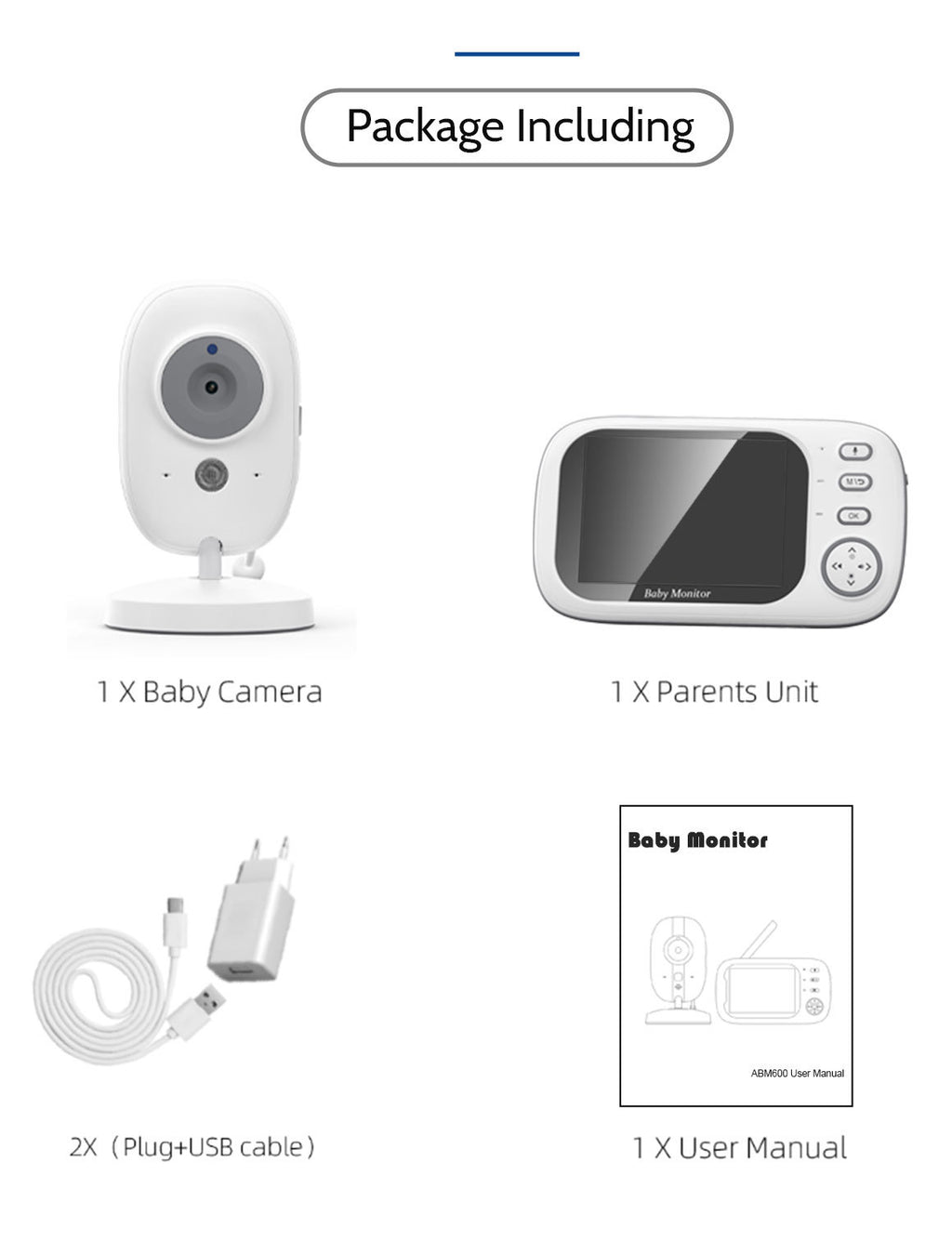

Packing Details

Outer box size: 435*425*300MM

 Quantity per box: 40 units

Weight: 17KG

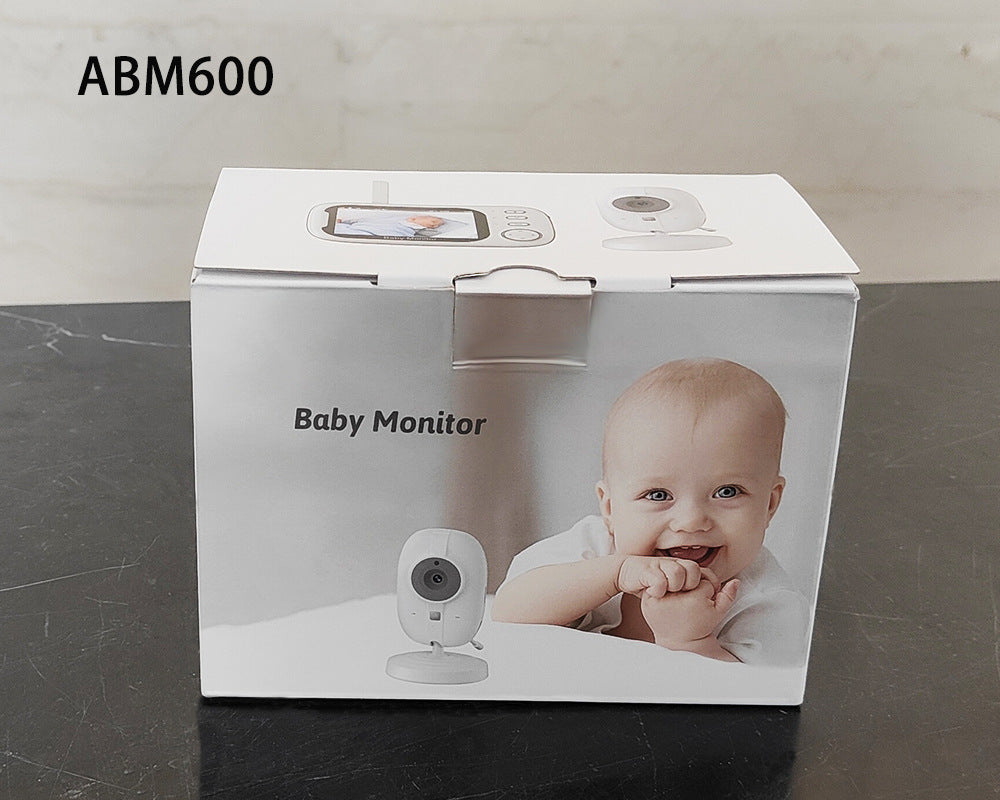

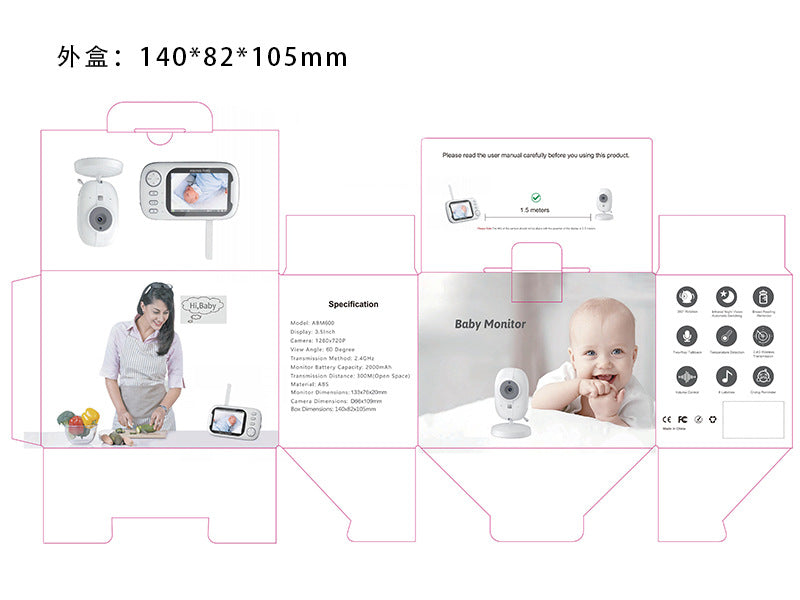

Color box size: 140*82*105MM

Set weight: 400g

ABM600 Product Specification Book
1.Technical Parameters
Model ABM600 Camera 1280*720P Cry Alarm Support Operating Temperature 65℃to -20℃
Display Screen 3.5inch Shooting Angle 60 degrees Rocking Cradle Support Transmission Method FHSS
Resolution 800*480 SENSOR 1/4COMS Feeding Timer Reminder Support Transmission Distance 300M Outdoor
Host power consumption 1.6W Camera power consumption 1.5W Night vision (automatic) Support Camera net weight /
Battery 1500MA/H Camera Recording Support Temperature Alarm Support Display Net Weight

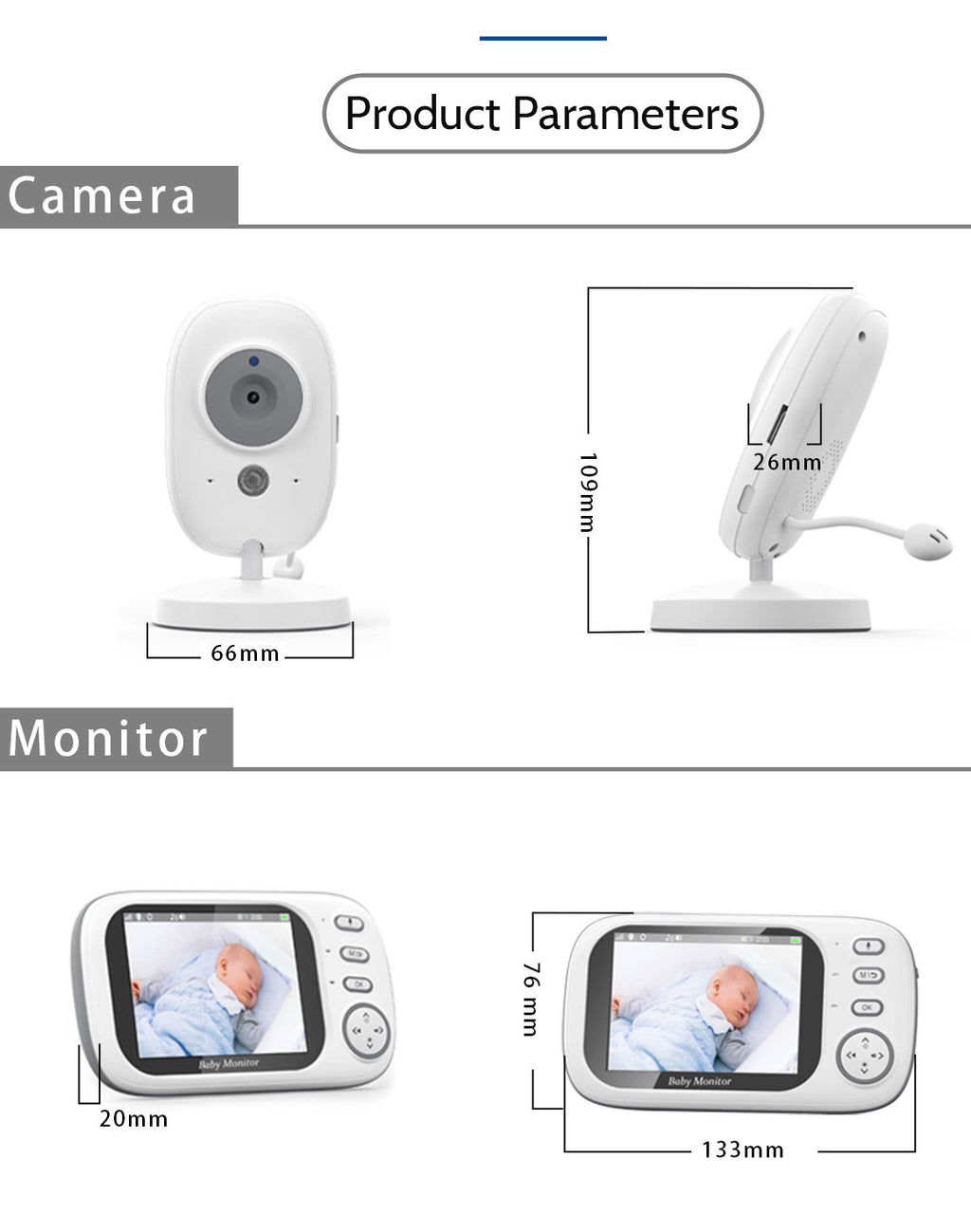

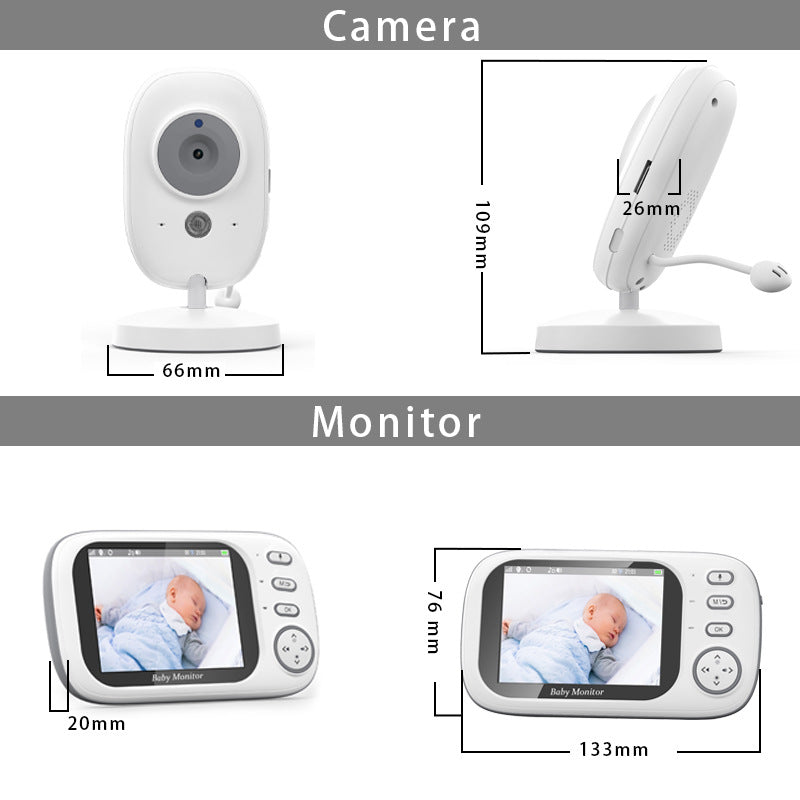

Main body dimensions: Length 133* Width 76* Thickness 20MM Camera body dimensions: Diameter 66*108MM
Camera Button Definition and Pairing
Camera pairing: Press the power button twice to enter pairing mode, and the blue light will flash
Display end code pairing: Open the menu and select 'Add Camera', press OK to enter pairing mode, the blue light flashes, pairing success stops flashing
Display End Button Definition
Switch Key: Long Press to Power On/Off; Short Press to Turn Screen On/Off (You Can Hear the Sound from the Camera)
Intercom button can be pressed to send voice to the camera
Menu Key Open/Return Menu Selection: Volume, Nursing Reminder, Lullaby, Time Setting, Temperature Unit Switch, VOX, Brightness
Up arrow direction key
Down arrow direction key
Left arrow key
Right Click Direction Key
OK button Function confirmation
M key Menu key/Return key.Short press to display the menu, short press at level 3 to return to level 2
Reset Button Restart Function

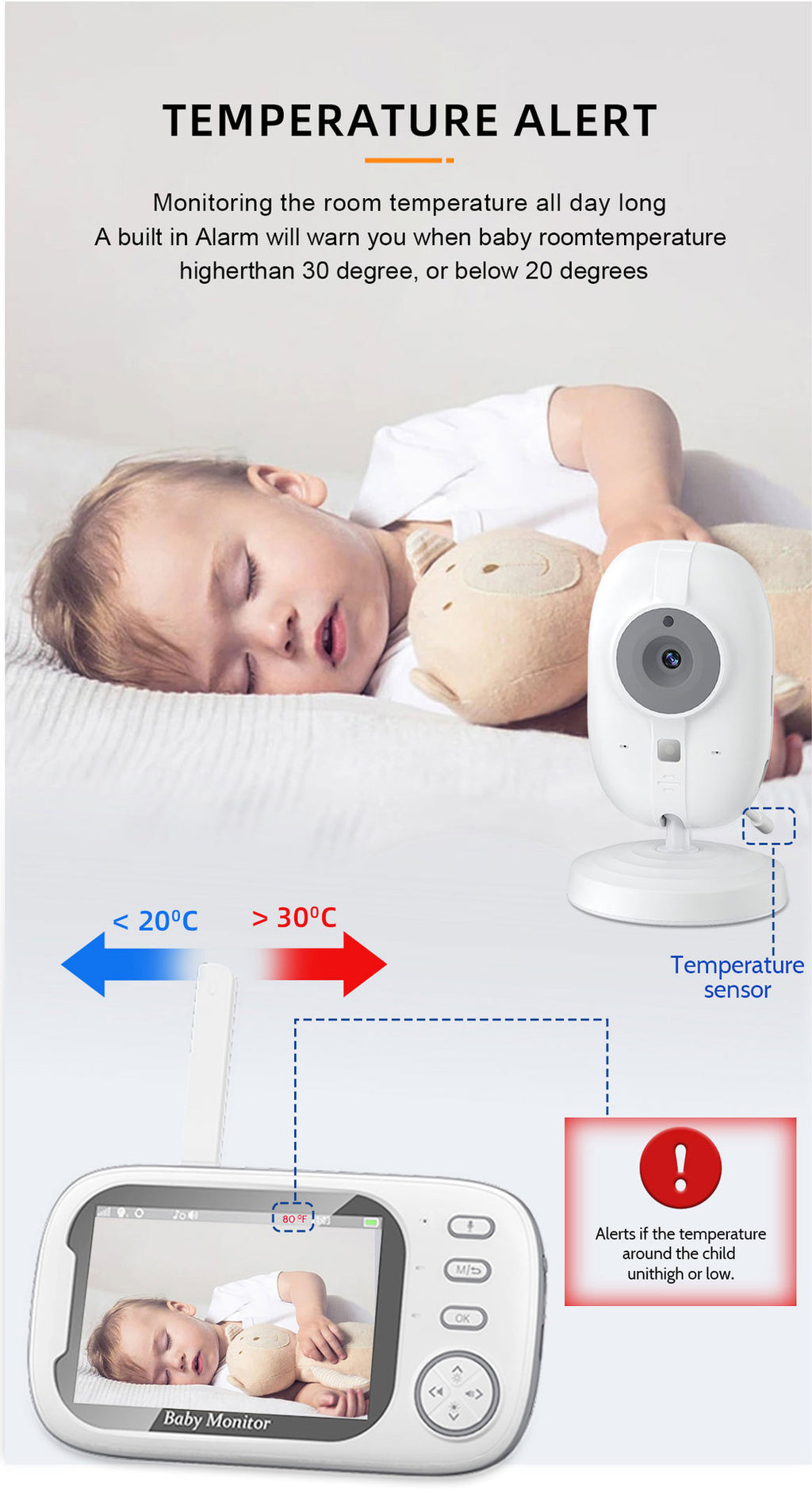

Function: Two-way intercom, infrared night vision, room temperature monitoring alarm 20℃-30℃In addition, sound detection alarm
Purpose: Caregivers need to go to other rooms for other tasks, they can bring the display unit with them to monitor the temperature of the baby's room at any time between 20-30 degrees℃Observation
Check the baby's current status such as kicking off the blanket etc.If the baby wakes up crying at this time, you can turn on the intercom to provide verbal comfort to the baby, ensuring uninterrupted family affection; when the baby needs to rest, you can turn on the lullaby to help the baby easily fall asleep.At night, you can use VOX mode with the screen turning off after 30 seconds, and when the sound in the baby's room exceeds the set value, the screen lights up.

4.Function Introduction
1.The sound and image from the baby end are transmitted to the display end in real time, allowing adults to monitor the baby's condition in real time.When the intercom button on the display end is pressed, it can communicate with the baby
Children's Language Development and Other
2.Breastfeeding reminder function: When set to 0:30H, there will be an image and sound alarm at the display after 30 minutes from the current time to remind you when you are busy
Adults, it's time to feed the baby, and so on
3.The display side can choose 8 lullabies to play for the baby side
4.Set the time according to different time zones
5.Set the display temperature according to personal habits:℃/℉
6.You can select the baby monitor to display.If two baby monitors are connected at the same time, you can switch between them automatically or manually
7.VOX mode: Default is off.When the ambient sound at the baby's end is lower than the set value, the display screen at the parent's end turns off after 30 seconds
When the sound exceeds the set value, the display screen lights up.You can choose according to the environment: HIGH/MED/LOW
3 Operating Instructions
Code Matching: CAM power-on state, quickly press the power button twice and the blue light flashes (about 10 seconds), indicating code matching mode.At the same time, turn on the display unit and press the M button to open the menu

Find and enter the code pairing mode, the red light on the top left corner of the display flashes, indicating successful code pairing for CAM1

CAM2 operates like pressing the menu button to return to the main screen, pressing the camera button to switch to the pairing mode, and automatically exiting the pairing mode after 10 seconds of no connection
(Note: One baby monitor can only be connected to one display unit, and one display unit can connect to two baby monitors simultaneously; the baby monitor cannot be connected to an adult display unit.)
Avoid getting too close to avoid causing feedback
4.Usage Distance
Outdoor open space: 300M
Indoor: 30M depending on the material of the wall, distance varies
5.Whistling
The baby monitor transmits sound from the baby's end to the display end.To monitor whether the baby is crying, this function amplifies the surrounding sound and sends it to the display end
The display end keeps hearing this 'noise' loop, and the sound gets louder and louder, which sounds like the speaker emitting when the adult end approaches the baby end
The sound received by the baby's microphone is amplified and sent back to the adult's side, creating a howling effect
